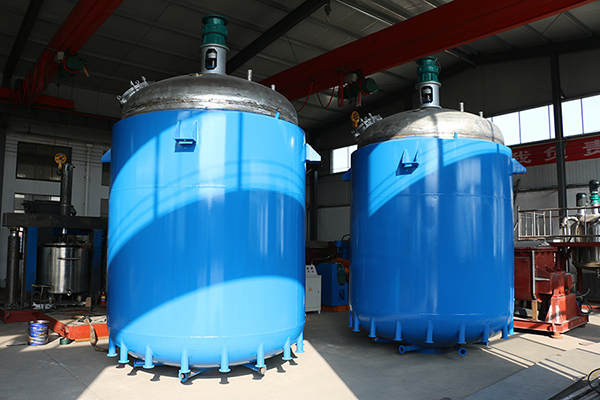

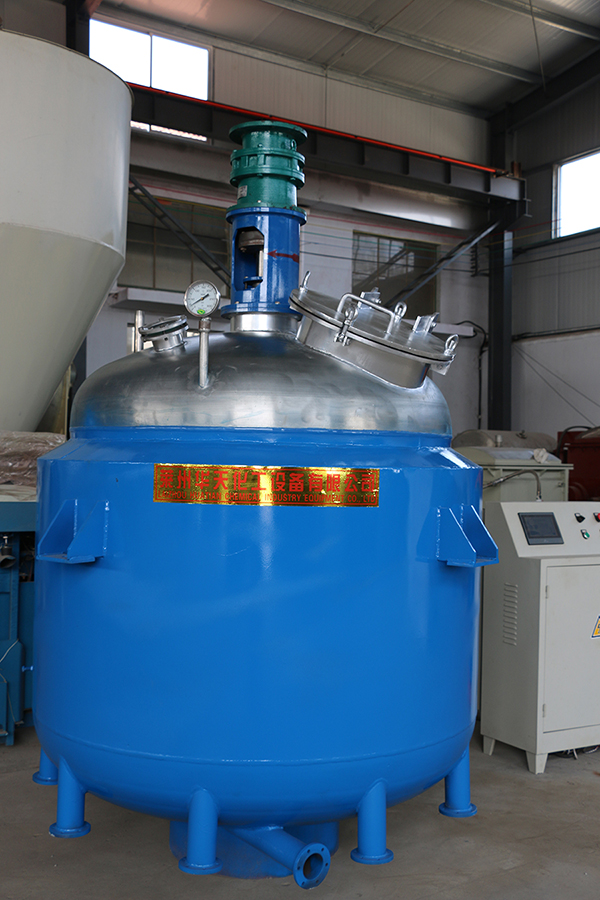

“Huatian” HT-FYF series of Reaction Kettles are new products researched and developed independently by ourselves after drawing on advanced technology from home and abroad. They are widely used in industries of medicines,chemicals,pigments,resins,foodstuff and building materials etc. They have features of rapid heating,high temperature resistance,corrosion resistance,hygiene,no environmental pollution,convenience in use and maintenance,advanced process,rational construction and good durability etc. There are many optional models from 50 to 10000 litres available.
Technical Data:
|
Model |
Nominal Volume(L) |
Actual Volume(L) |
Heating Power(kw*qty) |
Oil Jacket Volume(L) |
Inner Pot Size（Dmm) |
Jacket Size(D1mm) |
Support Screw Hole Center(D2mm) |
Expander Volume(L) |
n-d |
|
HT-FYF50 |
50 |
78 |
2*4 |
96 |
400 |
600 |
828 |
10 |
4-25 |
|
HT-FYF100 |
100 |
127 |
2*6 |
127 |
500 |
700 |
928 |
15 |
4-25 |
|
HT-FYF300 |
300 |
327 |
4*6 |
218 |
800 |
1000 |
1148 |
20 |
4-25 |
|
HT-FYF500 |
500 |
509 |
4*9 |
269 |
900 |
1100 |
1252 |
25 |
4-25 |
|
HT-FYF1000 |
1000 |
1017 |
4*12 |
400 |
1200 |
1400 |
1588 |
40 |
4-30 |
|
HT-FYF2000 |
2000 |
2154 |
4*15 |
850 |
1400 |
1600 |
1840 |
80 |
4-30 |
|
HT-FYF3000 |
3000 |
3201 |
5*15 |
1015 |
1600 |
1750 |
2040 |
100 |
4-35 |
|
HT-FYF4000 |
4000 |
4020 |
5*15 |
1226 |
1600 |
1750 |
2070 |
120 |
4-36 |
|
HT-FYF5000 |
5000 |
5170 |
5*18 |
1400 |
1800 |
2000 |
2320 |
140 |
4-36 |
